| Brand | Dell |
|---|---|
| Category | Dell Server Hard Drives |
| Part number | MG07SCA12TEY-Dell-1 |
| Model numbers | MG07SCA12TEY |
| Capacity | 12TB |
| Interface | SAS 3.5 Inch |
| Spindle speed (RPM) | 7200 |
| Data transfer rate | 12Gbps |
| Form factor | 3.5 Inch |
| Hot swap | Yes |
| Best for | Dell Server |

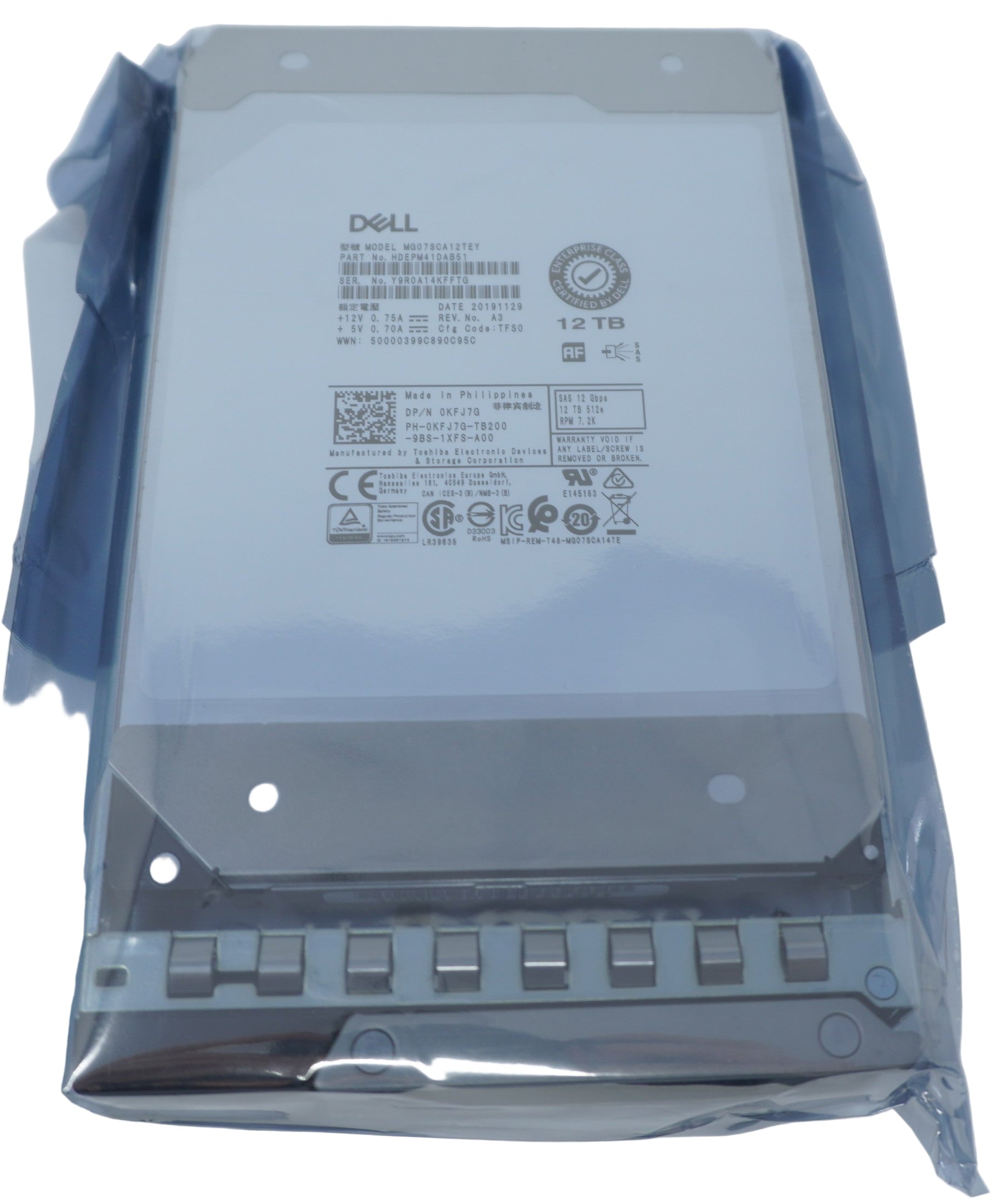

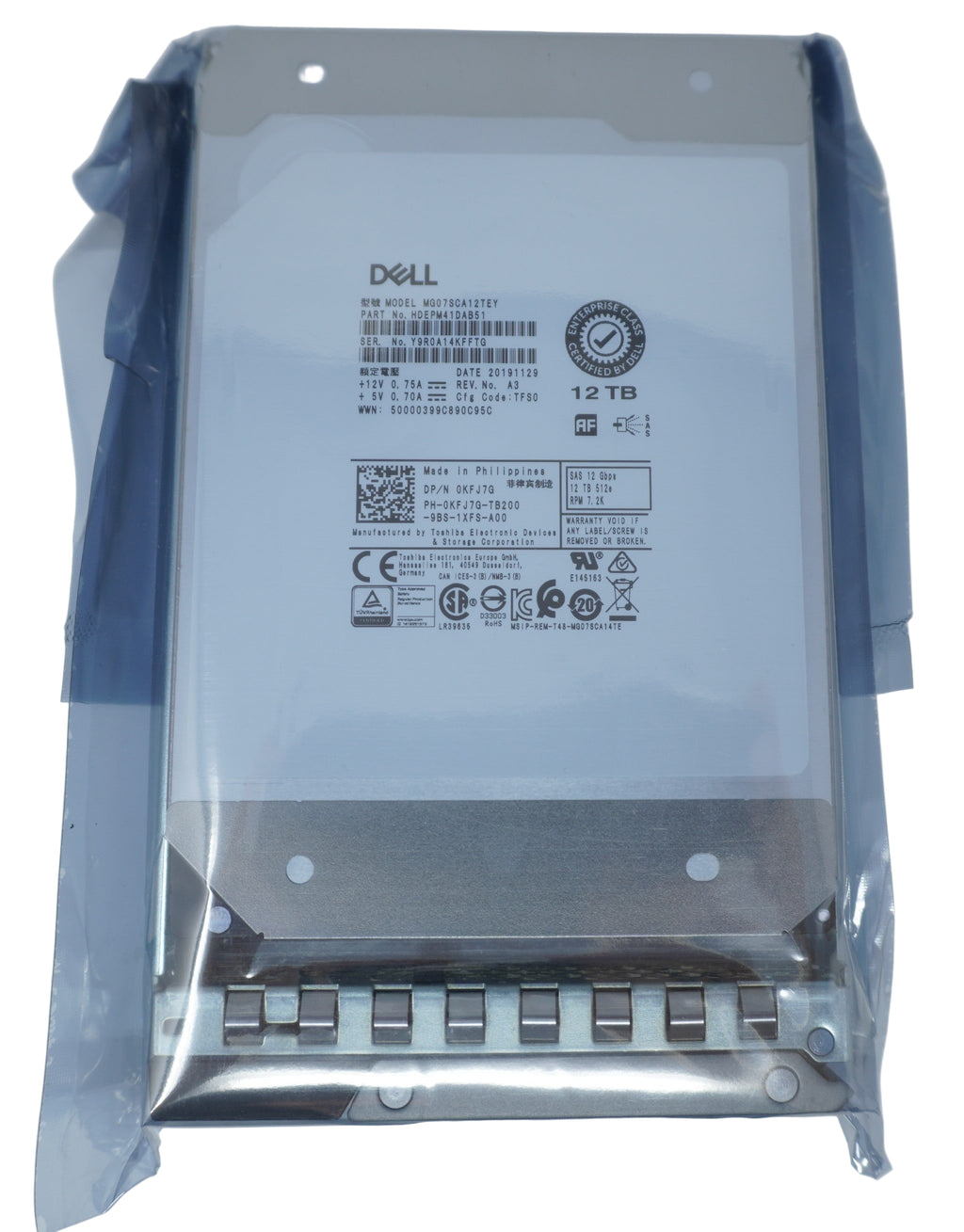

The Toshiba MG07SCA12TEY / Dell KFJ7G (0KFJ7G) is a high-capacity 12TB enterprise SAS hard drive designed for compatible Dell PowerEdge servers and enterprise storage environments. Featuring a 12Gb/s SAS interface, 7,200 RPM rotational speed, and 3.5-inch LFF form factor, this drive provides reliable high-capacity storage for data-intensive server, backup, archival, virtualization, and business storage applications.
Built for enterprise workloads, the MG07SCA12TEY combines large storage capacity with the reliability and performance expected from a data-center-class hard drive. The 512e sector format provides broader compatibility with supported enterprise RAID controllers and storage platforms compared with 4Kn-only drives.
Specifications
- Dell Part Number: KFJ7G / 0KFJ7G
- Manufacturer Model: MG07SCA12TEY
- Capacity: 12TB
- Interface: SAS
- Interface Speed: 12Gb/s
- Rotational Speed: 7,200 RPM
- Form Factor: 3.5-inch LFF
- Sector Format: 512e
- Drive Type: Enterprise HDD
- Hot-Swap Support: Yes, when installed with the appropriate compatible Dell carrier
- Application: Enterprise servers, RAID storage, data centers, backup and high-capacity storage
Compatible Dell PowerEdge Servers
G14:
R240, R340, R440, R540, R640, R6415, R740, R740xd, R740xd2, R7415, R7425, R840, R940, R940xa, T140, T340, T440, T640, C6420
G15:
R250, R350, R450, R550, R650, R650xs, R6515, R6525, R750, R750xa, R750xs, R7515, R7525, T150, T350, T550, C6520, C6525
G16:
R360, R660, R660xs, R6615, R6625, R760, R760xa, R760xd2, R760xs, R7615, R7625, R860, R960, T360, T560, C6615, C6620
Compatibility Note: Dell KFJ7G is a 3.5-inch LFF 12Gb/s SAS 512e drive. The server must have 3.5-inch drive bays, a SAS-capable backplane/controller, and support 12TB drives. If the drive is supplied with the X7K8W G14 caddy, a different generation-specific caddy may be required for G15/G16 servers.
