| Brand | QNAP |
|---|---|
| Part number | TVS-472XT |

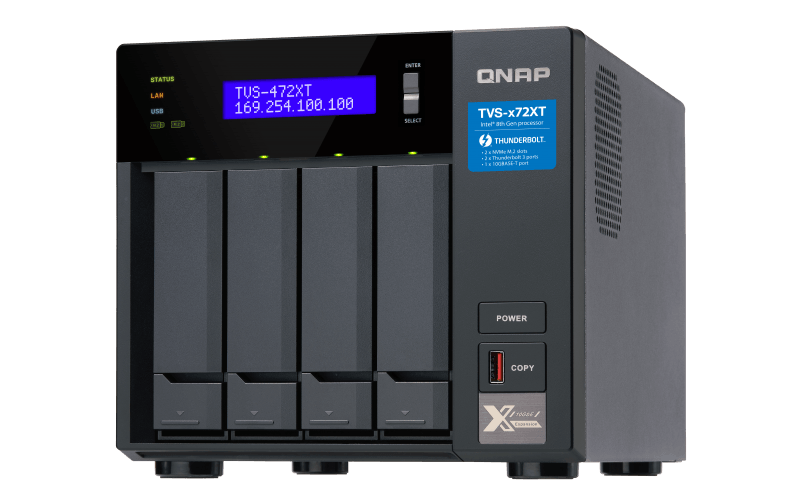

Purchase QNAP TVS-472XT Powered by an Intel 8th Generation processor, the TVS-472XT 4-Bay NAS Enclosure from QNAP features both 10 Gigabit Ethernet and Thunderbolt 3 high bandwidth connectivity for tackling heavy workloads and smoothly transferring, displaying, and editing 4K videos in real time. With M.2 SSD support and the ability to install a graphics card, the TVS-472XT provides the ability to boost performance and create a scalable working environment for collaboration and high-speed file sharing. The TVS-472XT is driven by hardware that delivers performance, comprehensive multimedia features, expandable storage capacity, and numerous other NAS functionalities.
- Brand: QNAP
- Model: TVS-472XT
- CPU: Intel® Pentium G5400T 2-core 3.1 GHz Processor
- CPU Architecture: 64-bit x86
- Graphic Processors: Intel® UHD Graphics 610
- Floating Point Unit: Yes
- Encryption Engine: Yes (AES-NI)
- Hardware-accelerated Transcoding: Yes
- System Memory: 4 GB SODIMM DDR4 (2 x 2 GB)
- Maximum Memory: 32 GB ( 2 x 16 GB)
- Memory Slot: 2 x SO-DIMM DDR4
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive Compatibility: 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives - Hot-swappable: Yes
- M.2 SSD Slot: 2 x M.2 2280 PCIe Gen3 x2 slots
- SSD Cache Acceleration Support: Yes
- Gigabit Ethernet Port (RJ45): Two (2)
- 10 Gigabit Ethernet Port: 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
- Wake on LAN (WOL): Yes
- Jumbo Frame: Yes
- Thunderbolt Port: 2 (Thunderbolt™ 3)
- PCIe Slot: 2
Slot 1: PCIe Gen 3 x16 (CPU), Slot 2: PCIe Gen 3 x4 (PCH)Slot 1 is preinstalled with a Thunderbolt 3 adapter - USB 3.2 Gen 1 port: 1
- USB 3.2 Gen 2 (10Gbps) Port:2 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps,
2 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps - IR Sensor: Yes (QNAP RM-IR004 & MCE)
- HDMI Output: 1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz)
- Audio Input: 1 x 3.5mm microphone input jacks
- Audio Output: 1 x built-in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)
- Form Factor: Tower
- LED Indicators: HDD 1-4, Status, LAN, USB port, M.2 port
- LCD Display/ Button: Yes
- Buttons: Power, Reset, USB Copy
- Dimensions (HxWxD): 7.41 × 7.85 × 11.01 inch
- Weight (Net): 11.9 lbs
- Weight (Gross): 15.45 lbs
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
- Power Supply Unit: 250W, 100-240V
- Power Consumption: HDD Sleep Mode: 24.14 W
- Power Consumption: Operating Mode, Typical: 37.32 W
- Fan: System fan: 1 x 120mm, 12VDC, CPU fan: 2 x 60mm blower fan
- Sound Level: 21.2 db(A)
- System Warning: Voice prompts or Buzzer
- Kensington Security Slot: Yes
- Max. Number of Concurrent Connections (CIFS): 700
- Shipping: Free Expedited (USA)
- Warranty: 1 Year
